    Weld - On Anodes
    Weld - On Anodes

    Price: Contact

      Product code: CM- WOA
    • Manufacturer : Chiang Yen Taiwan
    • Guarantee : 2 Year
    • Status: Manufacture with your request

    • Zinc/ Aluminum Weld-On Anodes

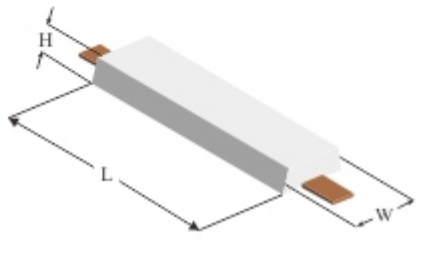

    Type Size (mm)
    H x W x L
    S-2 20x70x150
    S-3 20x100x200
    S-4 30x100x200
    S-5 32x77x306
    S-8 25x150x300
    S-9 30x150x303
    S-10 32x160x305
    S-15 50x154x325
    S-20 50x100x560
    S-30 75x100x563

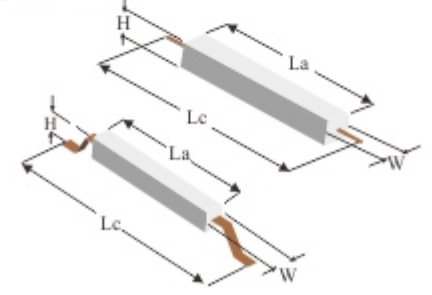

    Type Size (mm)
    H x W x L
    R-5 50x52x300
    R-7 50x50x462
    R-9 70x74x258
    R-13 89x96x272
    R-14 (58+66)x62x500



    S Series

    R Series

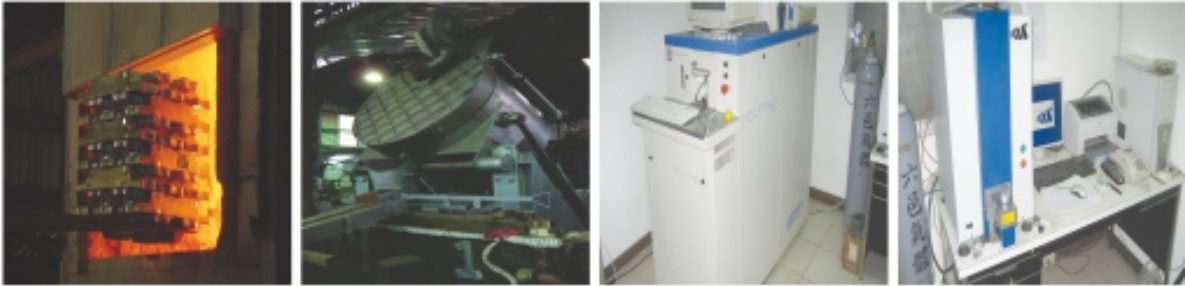

    QA & QC

    CYCP's anode foundry has been audited and certified by the China Corporation Register of Shipping (CR)

    ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

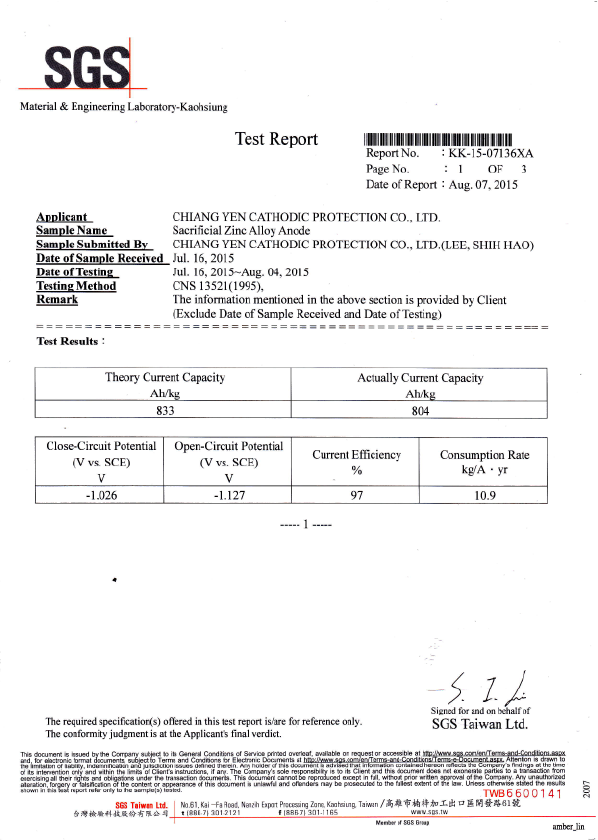

    • Zinc Alloy Anode Chemical Composition and Performance Specification: ASTM-B-418 : MIL-A-18001-K

    Chemical Composition
    Fe 0.005% Max
    Pb 0.006% Max
    Cu 0.005% Max
    Al 0.1 ~ 0.5 %
    Cd 0.025~0.07 %
    Zn 99.314% Min
    Technical Data
    Open-Circuit Potential (-V vs SCE) ≥ 1.05
    Anode Driving Voltage (V vs SCE) ≥ 0.22
    Close-Circuit Potential (-V vs SCE) ≥ 1.00
    Current Efficiency (%) ≥ 98
    Current Capacity ( A · hr/Kg) ≥ 780
    Anode Consumption Rate (kg/A·Yr) ≤ 11.2

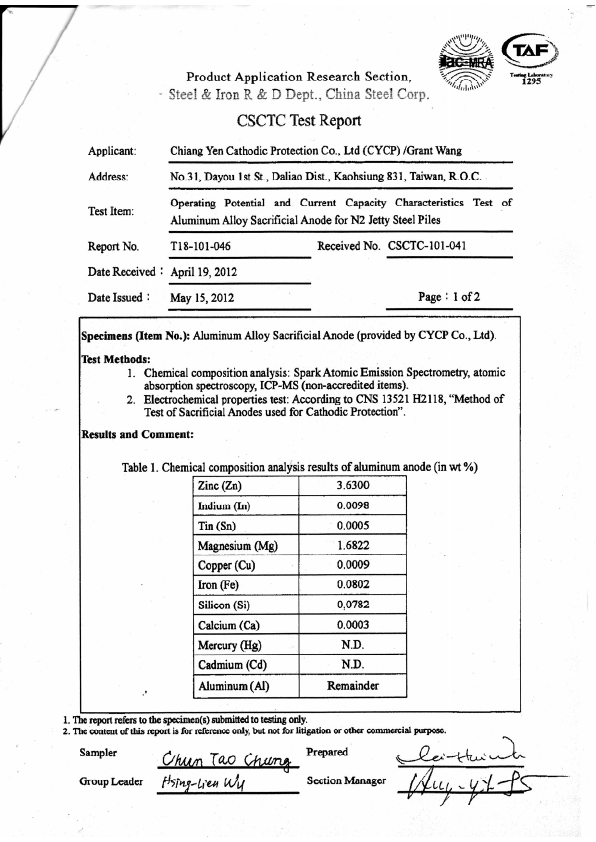

    • Aluminum Alloy Anode Chemical Composition and Performance Specification: CNS-13520 ALA2 ; GB/T 4948 ; MIL-A-24779

    Chemical Composition
    Zn 0.5~10 %
    In 0.005~0.05 %
    Fe 0.12 %
    Si 0.1 % Max
    Cu 0.01 % Max
    Mg 0.1~5 %
    Ca 0.005 ~ 0.05 %
    Cd < 0.001 %
    Hg < 0.001 %
    Al Remainder
    Technical Data
    Open-Circuit Potential (-V vs SCE) ≥ 1.10
    Anode Driving Voltage (V vs SCE) ≥ 0.25
    Close-Circuit Potential (-V vs SCE) ≥ 1.08
    Current Efficiency (%) ≥ 90
    Current Capacity ( A · hr/Kg) ≥ 2600
    Anode Consumption Rate (kg/A·Yr) ≤ 3.40
