    CYL-Type Fender
    CYL-Type Fender

    Price: Contact

      Product code: CM- CYL
    • Manufacturer : HWASEUNG EXWILL - Korea
    • Guarantee : 2 Year
    • Status: Manufacture with your request

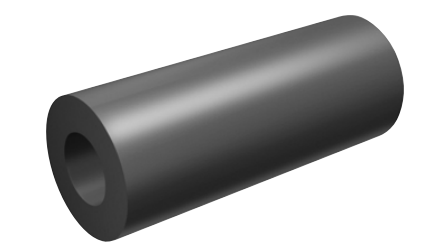

    • CYL- Type Fender

    It's simply cylindrical construction, and is able to withstand large compressive deformation with low reaction load. It is also freely secured without the necessity of precise anchor bolt arrangements.

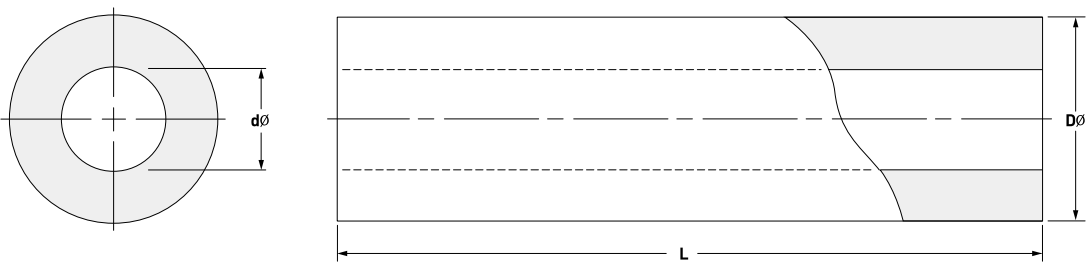

    • Dimension (Unit:mm)

    Size Ø150 Ø200 Ø250 Ø300 Ø400 Ø500 Ø600 Ø700 Ø800 Ø900 Ø1000 Ø1100 Ø1200 Ø1400 Ø1500 Ø1600 Ø1800 Ø2000
    x Ø75 xØ100 x Ø125 x Ø150 x Ø200 x Ø250 x Ø300 x Ø350 x Ø400 x Ø450 x Ø500 x Ø550 x Ø600 x Ø700 x Ø750 x Ø800 x Ø900 x Ø1000
    ØD 150 200 250 300 400 500 600 700 800 900 1000 1100 1200 1400 1500 1600 1800 2000
    Ød 75 100 125 150 200 250 300 350 400 450 500 550 600 700 750 800 900 1000

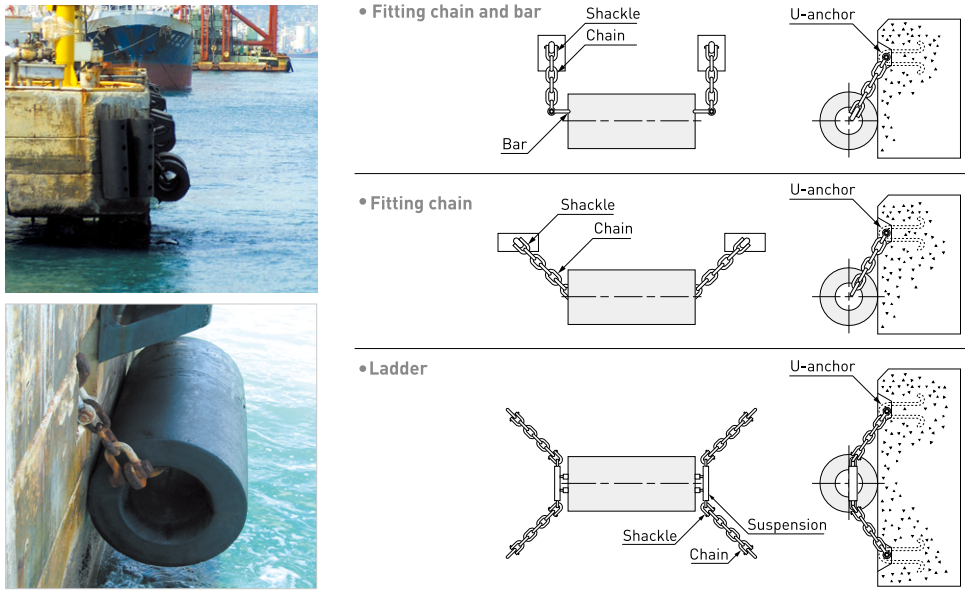

    • Installation Example

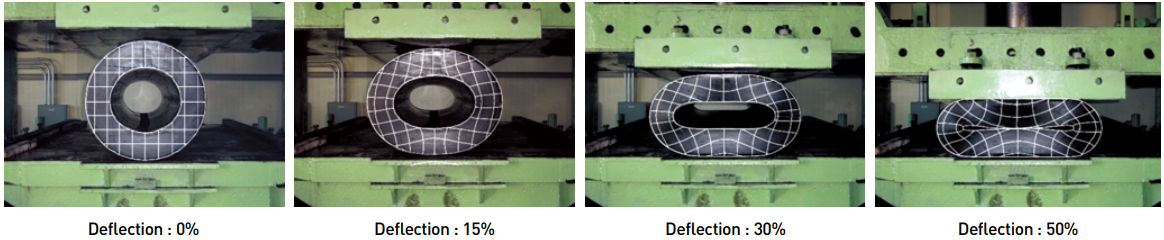

    • Compression Test

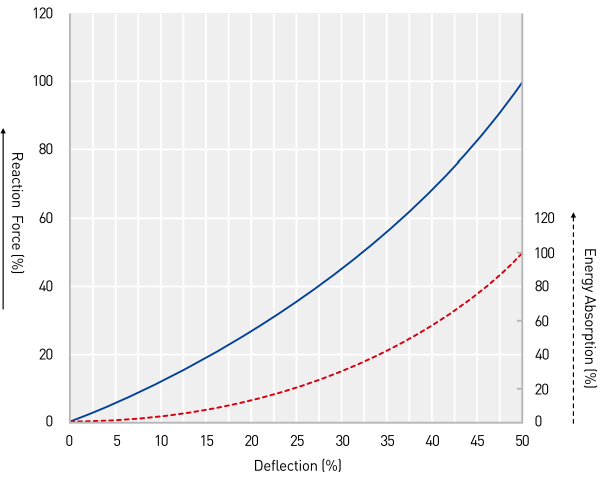

    • Performance Curve

    • Performance of Intermediate Deflection

    Deflection (%) R • F(%) E • A(%)
    0 0 0
    5 5 1
    10 12 3
    15 19 7
    20 27 12
    25 35 20
    30 45 30
    35 56 42
    40 69 58
    45 83 77
    50 100 100



    • Performance Table and Pianc Factor View asiafender catalogue to know more detail infomation
