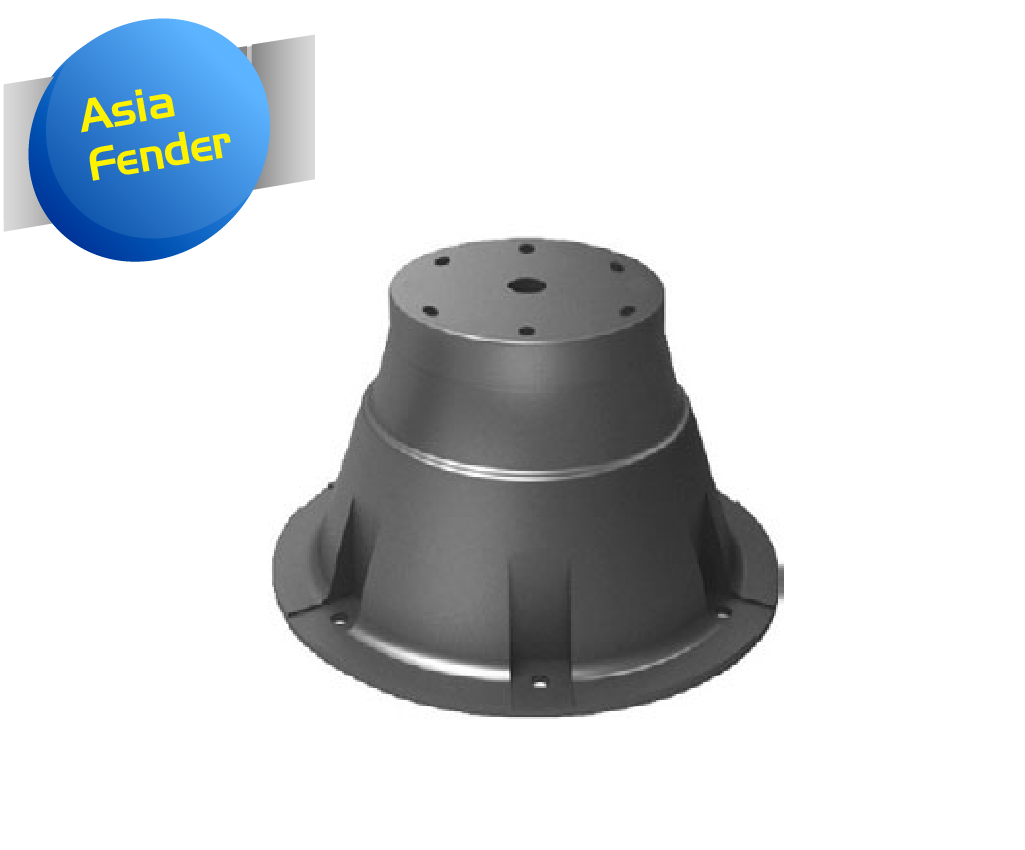

    Hyper Spool Fender ( HSP )
    Hyper Spool Fender ( HSP )

    Price: Contact

      Product code: CM- HSP
    • Manufacturer : HWASEUNG EXWILL - Korea
    • Guarantee : 2 Year
    • Status: Manufacture with your request





    • HSP-Type Fender

    Hysper spool fender (HSP) is a new circular type fender which is based on super spool fender.

    It is high-performance marine fender with superior durability

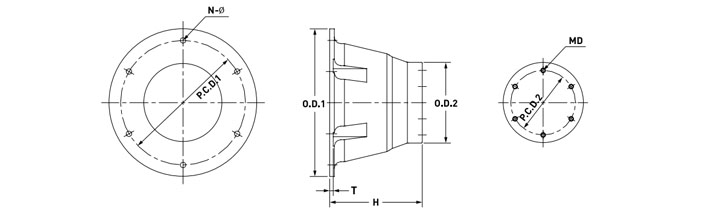

    • Dimension (Unit:mm)
    Dimension MD O.D.1 P.C.D.1 O.D.2 P.C.D.2 T N-Ø
    Hight
    300H M20 (3/4) 500 440 262 210 18 4-26
    350H M20 (3/4) 575 510 306 245 20 4-26
    400H M20 (3/4) 650 585 350 280 20 4-26
    500H M24 (1) 820 730 436 350 22 4-30
    600H M24 (1) 900 810 525 420 23 4-30
    700H M30 (1 1/4) 1120 1020 615 490 26 4-38
    800H M30 (2 1/2) 1280 1165 700 560 31 6-38
    900H M30 (2 1/2) 1450 1313 785 630 36 6-38
    1000H M42 (1 3/4) 1600 1460 878 700 38 6-50
    1150H M42 (1 3/4) 1850 1550 1000 805 41 6-50
    1200H M42 (1 3/4) 1920 1750 1050 840 46 8-50
    1300H M42 (1 3/4) 2080 1900 1140 910 53 8-50
    1400H M42 (1 3/4) 2240 2040 1225 980 54 8-50
    1600H M42 (1 3/4) 2560 2330 1400 1120 64 8-60
    1800H M56 (2 1/4) 2880 2620 1575 1260 90 10-70
    2000H M56 (2 1/4) 3200 2920 1700 1400 100 10-70
    View asiafender catalogue to know more detail infomation

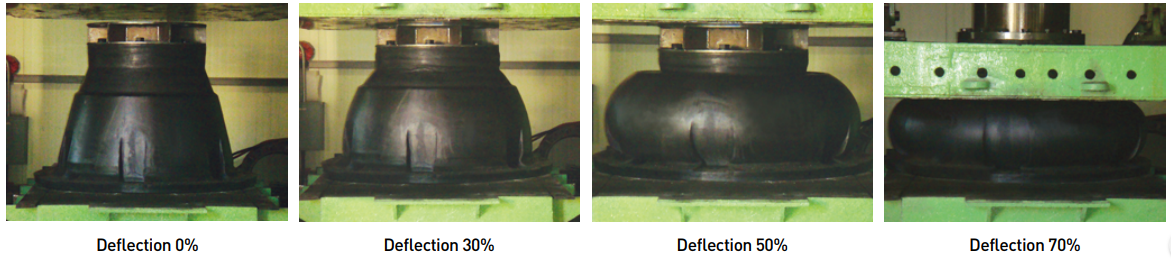

    • Compression Test

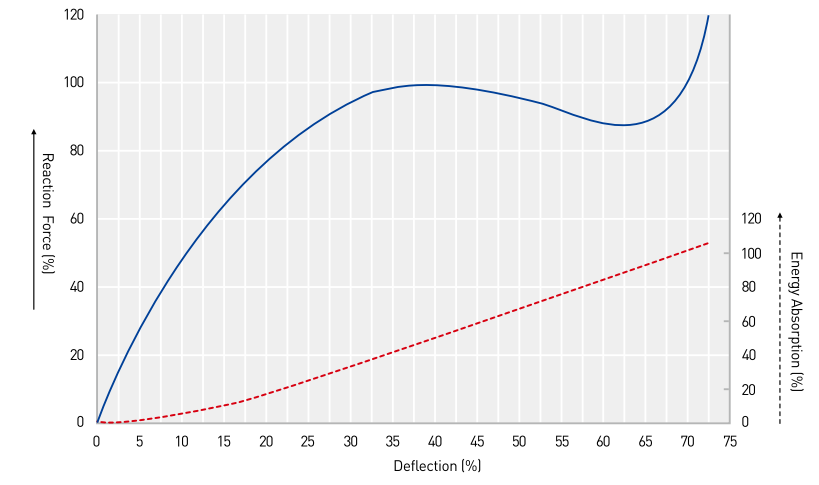

    • Performance Curve





    • Performance of Intermediate Deflection

    Deflection (%) R • F(%) E • A(%)
    0 0 0
    5 27 1
    10 48 5
    15 65 10
    20 78 16
    25 88 24
    30 95 32
    35 99 40
    40 100 49
    45 99 58
    50 96 67
    55 93 75
    60 89 84
    65 89 92
    70 100 100
    72.5 121 105

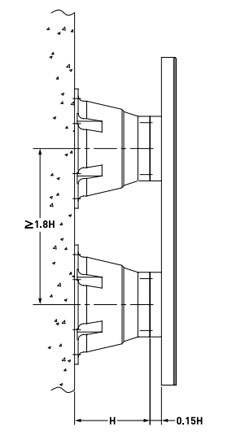

    • Clearances

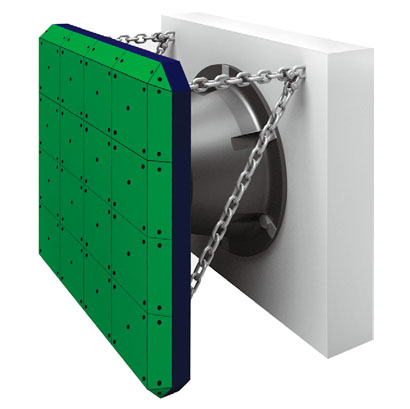

    • 3D Model

    • Performance Table and Pianc Factor View asiafender catalogue to know more detail infomation
