Home | Products | Asia Fender

TRS Fender (TRS)

Price: Contact

Product code: CM- TRS

Manufacturer : HWASEUNG EXWILL - Korea
Guarantee : 2 Year
Status: Manufacture with your request

Product Details

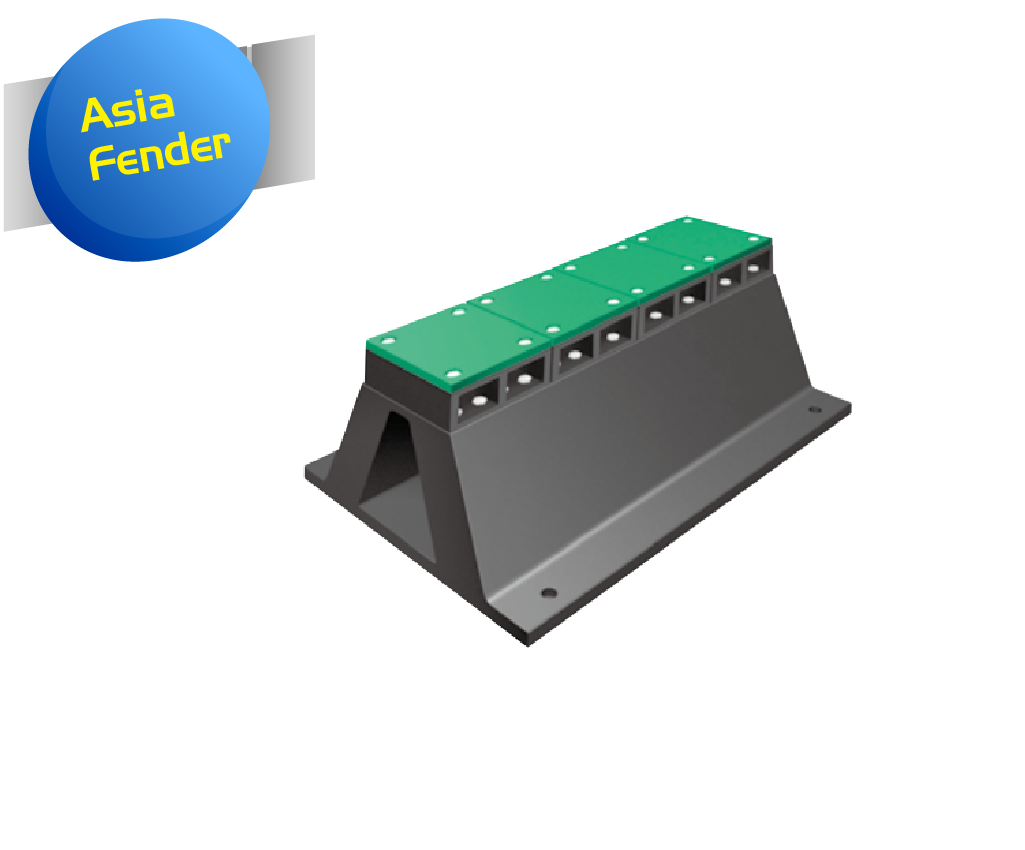

• TRS-Type Fender

TRS fender is an improved V type fender which has high energy absorption. R/E ratio is smaller than other Fenders. It's reinforced by an embedded steel plate across the entire bottom as well as the top of the fender. Resin board is attached on the top of the fender in order to protect the rubber body, to gain better performance and to decrease friction force.

TRS- A type: This type has a synthetic resin board installed on it's top.

TRS- B type: This type has a synthetic resin board, which is not of one piece but divided into separate piece as many as required, installed on it's top

TRS- C type: This type is the one which has a synthetic resin board installed on top of the I.S joint (steel) made already fixed

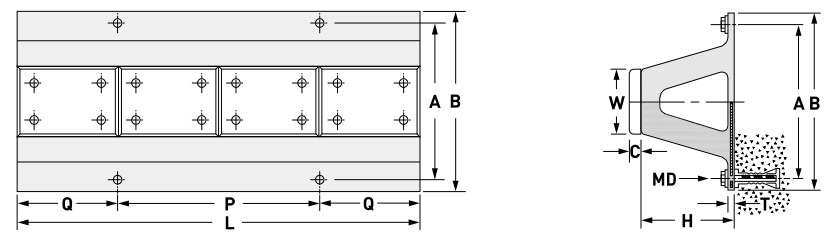

• Dimension (Unit:mm)

Dimension	MD	A	B	P	Q	T	W
Height	MD	A	B	P	Q	T	W
150H	M18 (3/4)	260	320	500	250	20	100
200H	M24 (1)	310	380	500	250	25	130
250H	M24 (1)	400	500	500	250	30	160
300H	M30 (1 1/4)	530	645	500	250	35	190
400H	M36 (1 1/2)	710	840	500	250	40	250
500H	M42 (1 3/4)	860	1000	500	250	45	320
600H	M48 (2)	1050	1210	500	250	50	380
800H	M64 (2 1/2)	1350	1550	500	250	60	500
1000H	M64 (2 1/2)	1600	1800	500	250	70	640
